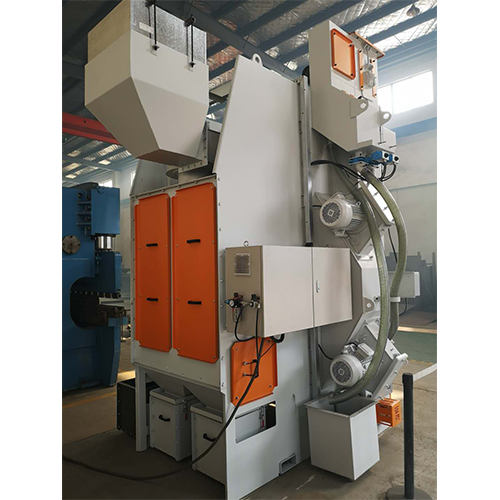

Hook blast machine TF-H2S0812
TF-H2S0812 SPECIFICATION
|
|
Specification |
Remark |
|
Wheel Blast Motor Power |
2×7.5kw |
Energy-saving Motor |
|
Abrasive Flow |
135kg/min |
|
|
Wheel Blast Motor Model |
TF-H2S0812 |
|
|
Wheel Blast Wear Parts |
Investment Casting |
|
|
Elevator Motor Power |
2.2KW |
Worm Gear |
|
Elevator Lift Abrasive |
24T |
|
|
Internal Protection Steel |
Mn13 |
Manganese Steel |
|
Rotation Motor Power |
0.4kw |
SHENGBANG |
|
Gourd Power |
1.5kw/1T |
KAIDUN |
|
Dust Collector |
Pulse Filter + HEPA Filter |
Laminating/Flame-retardant Filter |
|
Dust Discharge |
≤10mg/m³ |
|
|
Fan Motor Power |
3kw |
|
|
Filter Area |
2×18m²=36m² |
|
|
Sediment Box |
Inside Integration |
|
|
Electric Control Box |
IP54 |
OEM |
|
Electric Control Parts |
Schneider |
|
|
Time Relay |
OMRON |
|
|
Pneumatic Components |
AIRTAC |
|
|
Touch Panel |
SIEMENS |
★Option |
|
PLC Control |
SIEMENS |
★Option |
|
Intelligent Interconnection |
Independent Research and development |
★Option |
|
Reducer |
Worm Gear |
BANGDUOLI |
|
Maximum Operating Range |
φ900*1200h |
|
|
Maximum Bearing Weight of Hook |
900kg |
|
|
Working Volt |
Customer Made |
|
|
Size |
L*W*H=3800*2100*4000mm |
|
|
Weight |
5T |
|
|
Attached Wear Parts |
Blade |
8pcs |
|
Impeller |
1pc |
|
|
Control Cage |
1pc |
Features.
1. One-piece design, takes up little space, and can be easily moved without disassembly.
2. The chamber body and door panel are made of all-manganese steel (Mn13) welded at one time, and the independent manganese steel plate is laid in the shot blasting hot zone for easy replacement
3. The door frame adopts a unique sealing structure, and there is no steel shot or dust flying out.
4. Pulse dust removal system, 36㎡ filter area, discharge dust content ≤10mg/m³
5. The overall dynamic and flat street detection and assembly of the shot blasting machine has lower noise and longer service life
6. Precision casting of wearing parts of shot blasting machine.
7. It can process 900KG in a single time.
8. Length 3800㎜×width 2100㎜×height 4000㎜, easy to transport and install
9. Turbine worm reducer, safe and stable
10. Well-known electrical appliance brand, low failure rate and longer life.
